Gapless Piston Rings Features: Increased Horsepower and Torque Longer Engine Life Saves Money (Fewer Teardowns) Improved Consistency Cleaner Engine Oil Longer Ring Life Better Oil Control Less Friction Lower Engine Oil Temperatures Wilder Torque Curve More Engine Vacuum

How it Works...

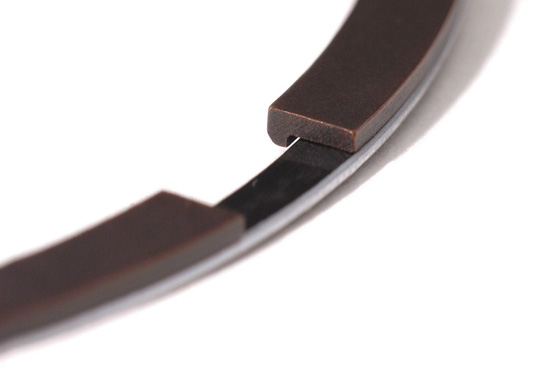

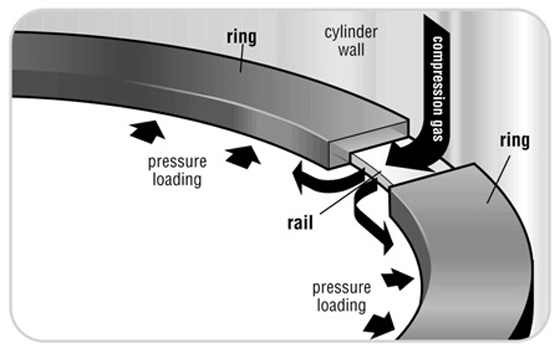

As a normal ring wears, the gap opens up, allowing more combustion gases to escape (blow-by). The Total Seal Gapless� ring solves the problem. Its patented design incorporates a two-part interlocking ring that closes off the gap and provides a better or improved seal between the piston and cylinder.

As the Total Seal ring wears, the gap stays sealed, even after dozens of grueling races. Blow-by is a thief. It steals power, it shortens the lubrication life of the crankcase oil, it causes parts to wear out prematurely, and it continues to reduce the power as the ring gap increases in size.

Big deal? Yes it is.

Blow-by is the escape of combustion gases past the piston rings into the crankcase. Blow-by steals the horsepower from your engine. It reduces usable torque. It cuts the life of engine parts.

Racers understand what blow-by is and they know how quickly it can render an engine uncompetitive. To keep blow-by under control, make sure cylinder walls are perfectly round, straight and finished to your ring set. Use your leak down tester to check each cylinder's leakage after every race. Compression gauges don't test leak down. In fact, your weekly checklist should include a leak down test. If your engine is unstable, the data you receive from checking tires or chassis setting may be unusable.

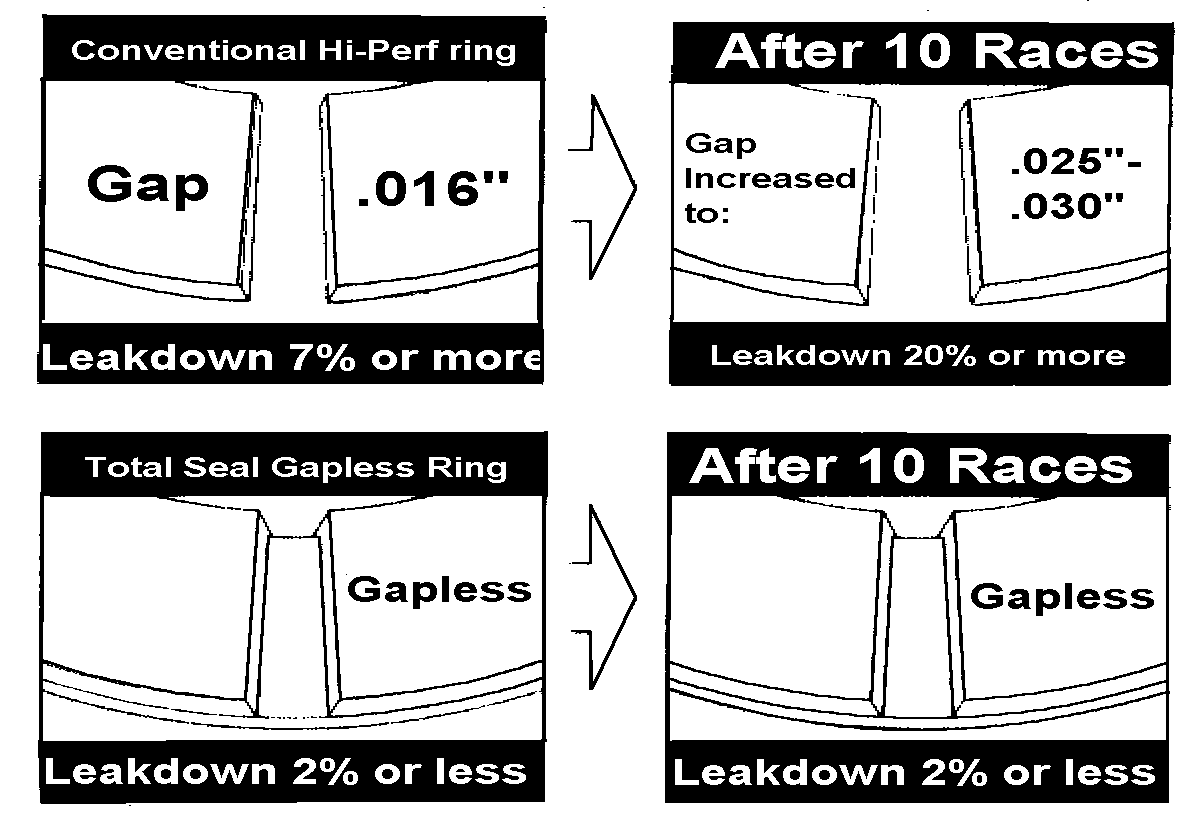

And, of course, the best ways to stop blow-by is to use Total Seal Gapless piston rings in your engine. Conventional leak down on a very carefully prepared engine averages 5% -8%. After a few races, with even the best conventional high performance rings, leak down of 12% or more is common-and we all know that excessive leak down will make your engine uncompetitive and cause premature failure of your parts.

Using the Total Seal Gapless ring always keeps your leak down to 2% or less. Readings of 0%-1% are common even after several races.

With Total Seal Gapless rings in your engine you get more compression, more horsepower, more torque, cleaner and cooler oil, better fuel economy and more stable conditions for other testing efforts.

Application	Min. Top Ring	Min. Second Ring	Oil Ring Rail
Street, Strip, Circle	Bore x .0045"	Bore x .0035"	Min. .015"
Nitrous up to 150hp	Bore x .006"	Bore x .0045"	Min. .015"
Nitrous over 150hp	Bore x .008"	Bore x .0055"	Min. .015"
Blown Gas*	Bore x .0055"	Bore x .0035"	Min. .015"
Blown Alcohol*	Bore x .0045"	Bore x .0035"	Min. .015"
Blown Nitro*	Bore x .0055	Bore x .0035"	Min. .015"

* Indicates any type of forced induction system.
