Leak Down Tester

Up AN Tools Koul Tool Tech EZ-On Hose Press Leak Down Tester Main Cap Pullers Ring Compressors Sleeve Installer & Pullers Tool Trays & Racks T-Handle Wrenches Valve Adjustment Wrenches

Injector Hat Leakdown Tester Instructions

Leak Down testers are designed for checking leakage:

-Fuel Injection Barrel Valves
-Engine Cylinders


Cylinder Leakdown Tester Instructions

Leak Down Tester
 Part Number: T-2001

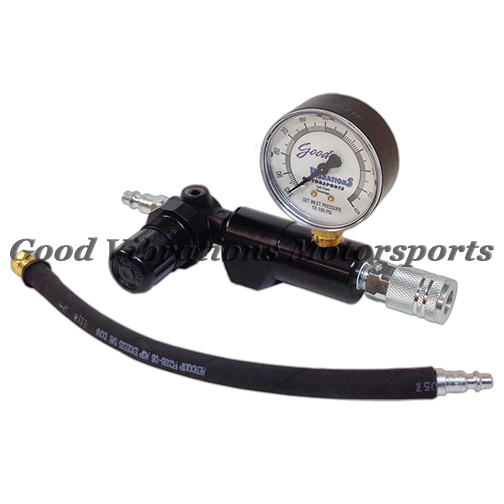

SINGLE GAUGE LEAKDOWN TESTER w/ AN6 INJECTOR HOSE

Regular Price: $180.00
Sales Price: $119.99
In Stock
Part Number: T-2001.8

SINGLE GAUGE LEAKDOWN TESTER w/ AN8 INJECTOR HOSE

Regular Price: $180.00
Sales Price: $119.99
In Stock
Part Number: T-2001.14mm

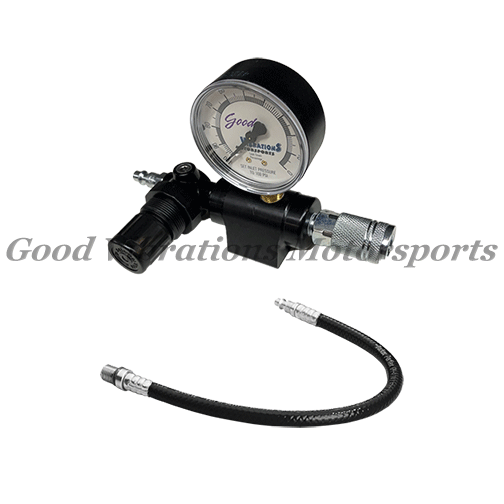

SINGLE GAUGE LEAKDOWN TESTER w/ 14mm CYLINDER HOSE

Regular Price: $180.00
Sales Price: $129.99
In Stock
Part Number: T-2003

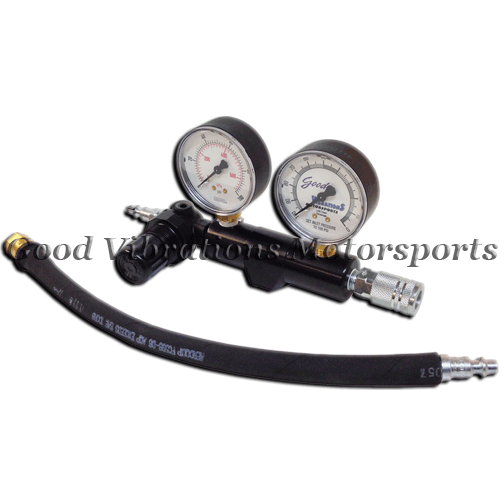

DUAL GAUGE LEAKDOWN TESTER w/ AN6 INJECTOR HOSE

Regular Price: $202.50
Sales Price: $139.99
In Stock
Part Number: T-2006

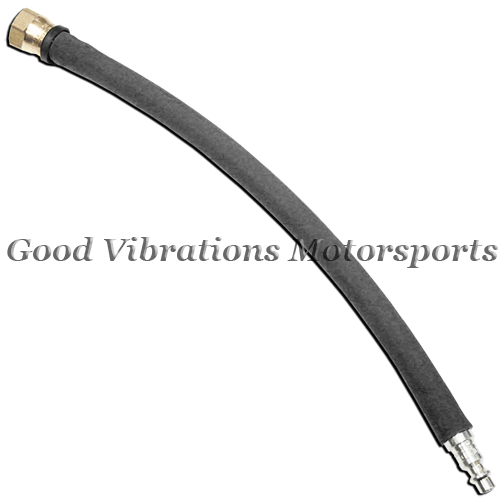

AN6 INJECTOR HOSE ASSEMBLY

Regular Price: $24.78
Sales Price: $16.99
In Stock
Part Number: T-2008

AN8 INJECTOR HOSE ASSEMBLY

Regular Price: $23.70
Sales Price: $16.99
In Stock
Part Number: T-2010

10MM ADAPTER HOSE ASSY

Regular Price: $29.39
Sales Price: $23.99
In Stock
Part Number: T-2012

12MM ADAPTER HOSE ASSY

Regular Price: $29.39
Sales Price: $23.99
In Stock
Part Number: T-2014

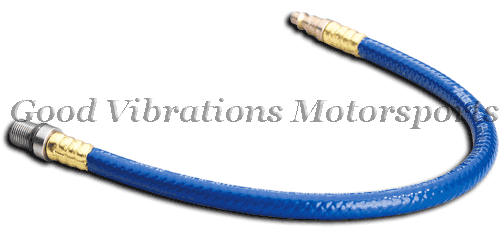

14MM ADAPTER HOSE ASSY

Regular Price: $29.39
Sales Price: $23.99
In Stock


Engine Cylinder Leakdown: (Click here for short VIDEO)

1) For most accurate results, engine should be up to operating temperature.

2) Remove all spark plugs.

3) Rotate crankshaft until piston being tested is at top dead center of compression stroke.

4) Screw the spark plug adaptor hose into spark plug hole making the sure the o-ring is seated properly.

5) Connect leakdown tester to a good source of compressed air, preferably a filtered and water trapped source.

6) Adjust the regulator on the leakdown tester so the the RIGHT GAUGE indicates 0.

7) Connect the spark plug adaptor hose to the coupler of the leakdown tester.

8) Read the leak down percentage on the RIGHT HAND GAUGE.
