Bypass Fuel Log

Installation Instructions

The bypass fuel log allows one to route return lines into one outlet. The log is machined from billet aluminum and normally mounts to the side of the 3-way shutoff valve. It has provision for 3 AN6 check valves. Is also tapped so that one can installed bypass pills for each check valve. The single outlet return line can returned to the fuel tank or back to the inlet of the pump.

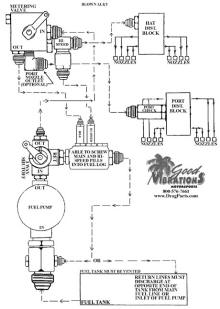

Downloadable Installation Instructions: (click on pic)
